Product Description

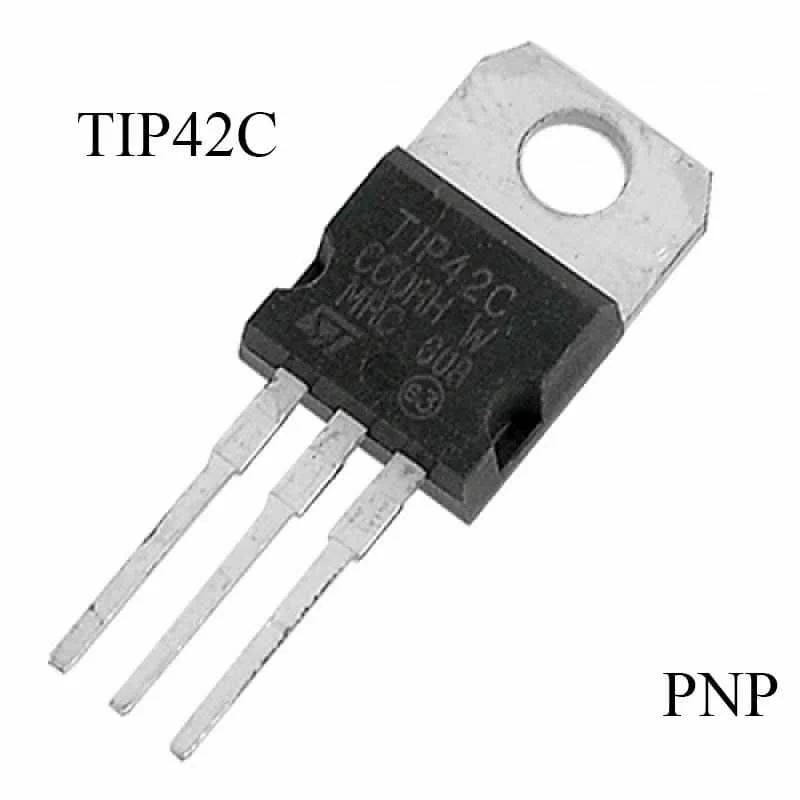

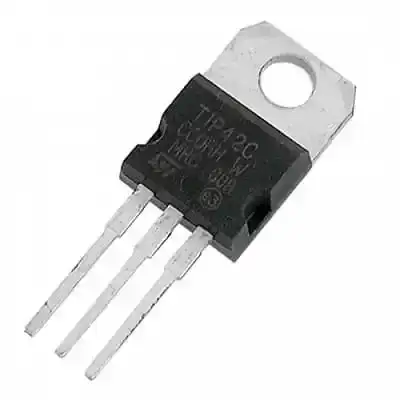

Product details of A Class TIP42C TIP42 TIP-42 TIP 42 PNP Transistor 100V 6A 65W 3 Pin General Purpose PNP Transistor TO-220 Epitaxial Silicon Power Transistor Electrical Circuitry & Parts

  • Package Type: TO-220
  • Transistor Type: PNP
  • Max Collector Current(IC): 6A or 6000mA
  • Max Collector-Emitter Voltage (VCE): 100V
  • Max Collector-Base Voltage (VCB): 100V
  • Max Emitter-Base Voltage (VEBO): 5V
  • Max Collector Dissipation (Pc): 65W
  • Max Transition Frequency (fT): 3 MHz
  • Minimum & Maximum DC Current Gain (hFE): 15 – 75
  • Max Storage & Operating temperature Should Be: -65 to +150 Centigrade

Description: A Class TIP42C PNP Power Transistor

TIP42C TIP42 TIP-42 TIP 42 PNP Transistor 100V 6A 65W 3 Pin General Purpose PNP Transistor TO-220 Epitaxial Silicon Power Transistor

TIP42C is a low cost general purpose power transistor that can be used for amplification and switching purposes in your electronic circuits. It can drive maximum 6 ampere of load. It can be a perfect transistor if you are looking to replace a TIP32, TIP32C or other similar transistors in your circuit design to drive more load. For driving loads a suitable heatsink should be used with this transistor. The maximum collector-emitter voltage and collector-base voltage is 100V due to which you can use it to drive maximum 100V of load. Moreover the maximum collector dissipation is 65W which is an ideal output to use this transistor for many types of audio amplification purposes. The collector of the transistor is connected with two points one is pin2 of the transistor and other is the metal can tab of the transistor.

Technical Specifications:

  • Package Type:TO-220
  • Transistor Type:PNP
  • Max Collector Current(IC):6A or 6000mA
  • Max Collector-Emitter Voltage (VCE):100V
  • Max Collector-Base Voltage (VCB):100V
  • Max Emitter-Base Voltage (VEBO):5V
  • Max Collector Dissipation (Pc):65W
  • Max Transition Frequency (fT):3 MHz
  • Minimum & Maximum DC Current Gain (hFE):15 – 75
  • Max Storage & Operating temperature Should Be:-65 to +150 Centigrade

NPN Complementary

NPN Complementary of TIP42C is TIP41C

Replacement and Equivalent

The replacement and equivalents for TIP41C transistor are 2SD1895, MJE5180, MJE5181, BD711, BC911. If the load you want to drive with TIP42C is in between 40V to 80V than you can easily replace with the exact same match of this transistor which are TIP41 (Drive Max 40V Load), TIP41A (Drive Max 60V Load) and TIP41C (Drive Max 80V Load).

Where We Can Use it & How to Use

The TIP42C can be used in any general purpose switching and amplification application. When using as a switch you can drive many loads at the same time (The sum of all load should not increase from 6A). It can drive DC motors, high power LEDs, high power relays, bulbs, devices etc.

Moreover it can also be used for general purpose amplification purposes. For example signal amplification, It can also be used to build a simple high power amplifier circuit or other than that it can also be used in high power audio amplifier stages.

Applications:

  • Audio Amplification
  • Signal Amplification
  • Driving Loads Under 6 Amperes
  • Driving and Controlling DC Motors
  • Darlington Pairs
  • Wide Variety Of General Purpose Applications

How to Get Long Term Performance in a Circuit

To make this device stay stable for years in your circuits it is recommended to not drive load more than 6A, always use a suitable heatsink, do not drive load more than 100V, for good and stable performance always stay below from the max values and always operate and store the device/transistor in temperature above -65 centigrade and below +150 centigrade.

Package Include:

  • 1 x A Class TIP42C TIP42 TIP-42 TIP 42 PNP Transistor 100V 6A 65W 3 Pin General Purpose PNP Transistor TO-220 Epitaxial Silicon Power Transistor
