Product Description
Other related documents: TDA2030A View All Specifications
Pin: 5 Pin
Category: Integrated Circuits (ICs)
Family: Linear – Audio Amplifier
Type: AB class
Output Type: 1-channel (mono)
Maximum output power at a load x Number of channels: 18W x 1 @ 4 ohms
Power supply voltage: 12 V ~ 44 V, ± 6 V ~ 22 V
Features: Short circuit and thermal protection
Mounting Type: Through Hole

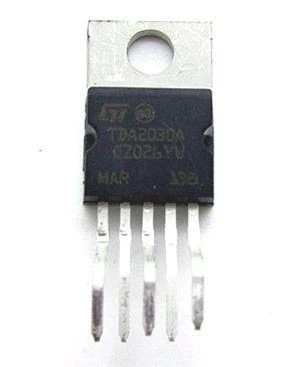

Description: TDA2030A TDA2030 18W Audio Amplifier IC TO-220 TDA 2030 18 Watt Mono Hi-Fi Audio Power Amplifier IC
The TDA2030 IC is a powerful audio amplifier IC able to deliver up to 20W of output power, so you can use it to run a 4Ω speaker at 12W or a 8Ω speaker at 8W.
Features:
Low frequency class AB amplifier most suited for audio amplification
Can provide up to 20 Watts as output power
Wide range of power supply from 6V to 36v
Short circuit and thermal protection is available
Breadboard friendly

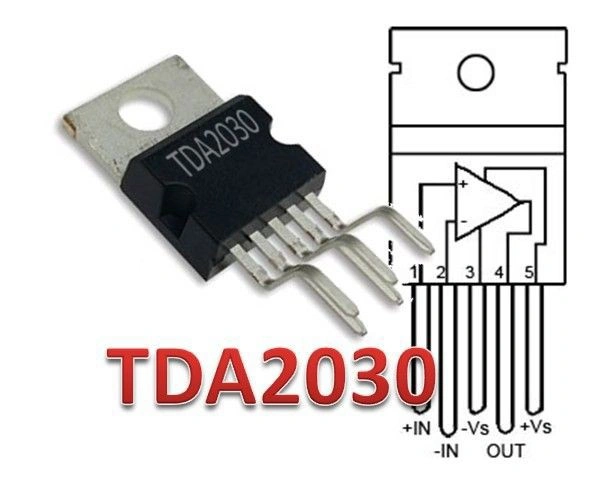

Available in 5-pin TO220 package
Specifications:
Other related documents: TDA2030A View All Specifications
Pin: 5 Pin
Category: Integrated Circuits (ICs)
Family: Linear – Audio Amplifier
Type: AB class
Output Type: 1-channel (mono)
Maximum output power at a load x Number of channels: 18W x 1 @ 4 ohms
Power supply voltage: 12 V ~ 44 V, ± 6 V ~ 22 V
Features: Short circuit and thermal protection
Mounting Type: Through Hole
TDA2030A Equivalent Audio Amplifiers

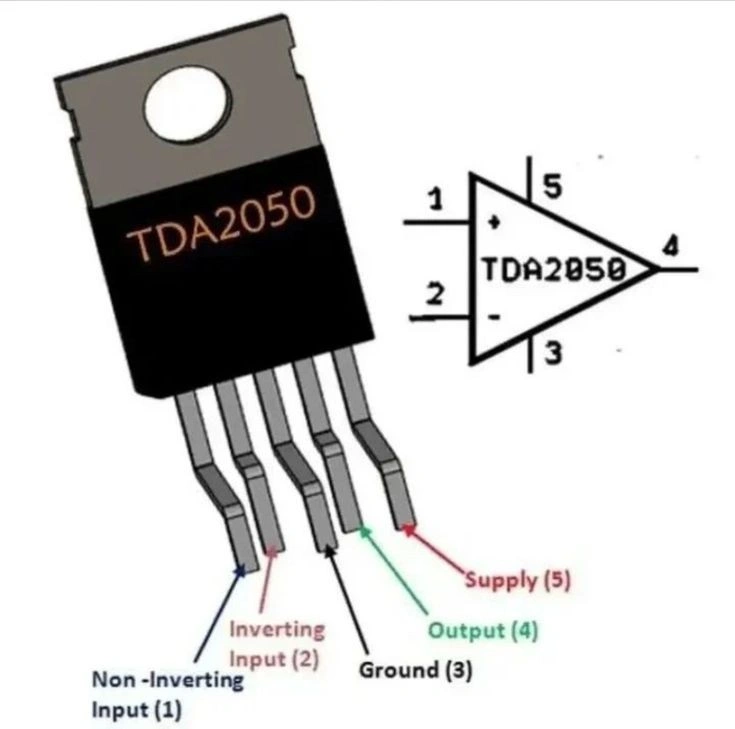

TDA2050, NTE1380, LM386
Where to use a TDA2030 amplifier?
The TDA2030 is a powerful audio amplifier IC. An audio amplifier is nothing but one that has the capability to amplify the audio signals from any audio source such as mobile phone jack or microphone so that volume is increased when the audio is played in a speaker. Audio amplifier circuits can also be made using simple op-amps, but if you need higher volume that is loud enough for a room then this power audio amplifier is will be the best choice. This IC can deliver up to 20W of output power, so you can run a 4Ω speaker at 12W or a 8Ω speaker at 8W.
Applications
Used for Audio signal Amplification
Suitable for high power amplification
Capable of operating on dual/split power supply
Can be used to cascade audio speakers
