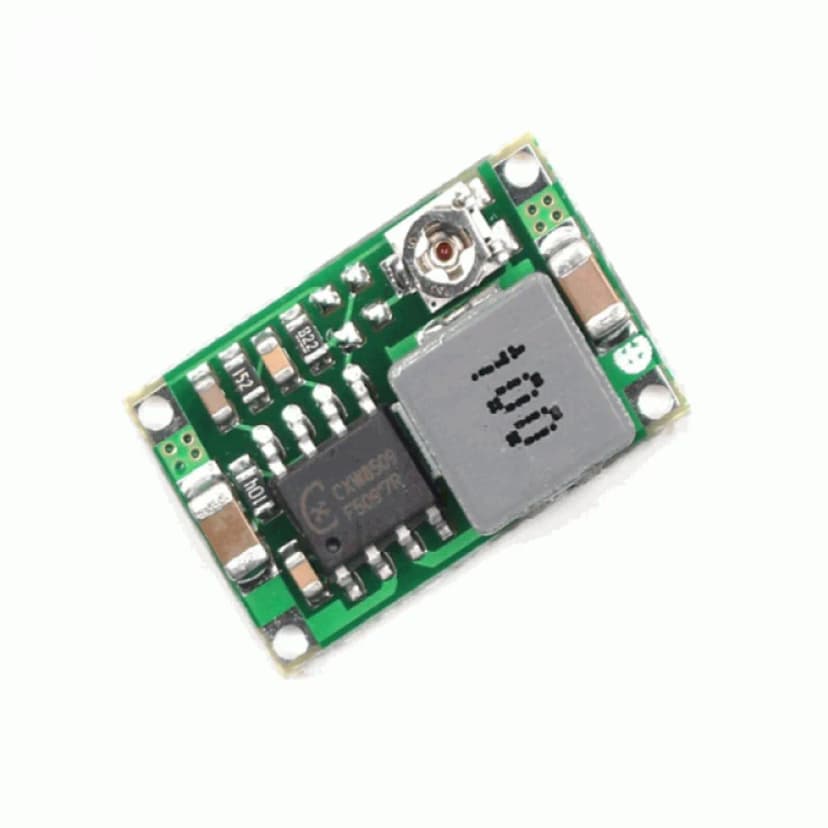

Image of DC DC Step Down Mini 360 Buck Converter Adjustable Module 4 75V 23V To 1V 17V 1 8A
1 / 2

৳ 49

৳ 199

DC DC Step Down Mini 360 Buck Converter Adjustable Module 4 75V 23V To 1V 17V 1 8A

Select Color:

Select Size:

Not Provided

You may also like

J5019 HW-357 Boost Module DC-DC Step Up Converter - Boosts Voltage for Tp4056 Battery Charger Efficient Voltage Boosting

J5019 HW-357 Boost Module DC-DC Step Up Converter - Boosts Voltage for Tp4056 Battery Charger Efficient Voltage Boosting

৳ 199৳ 64
DC 4V-35V 5A 90W PWM DC Motor Speed Controller Module Speed Regulator Control Adjust Board Switch 6V 12V 24V HW-687

DC 4V-35V 5A 90W PWM DC Motor Speed Controller Module Speed Regulator Control Adjust Board Switch 6V 12V 24V HW-687

৳ 80৳ 72
3 set male female Connector. total 6pcs(male+female) DC Jack Connector

3 set male female Connector. total 6pcs(male+female) DC Jack Connector

৳ 50৳ 45
Motor Speed Controller DC 1 8V 15V 2A PWM Voltage Regulator Adjustable Switch Easily Control and Optimize Motor Speed with Precision

Motor Speed Controller DC 1 8V 15V 2A PWM Voltage Regulator Adjustable Switch Easily Control and Optimize Motor Speed with Precision

৳ 199৳ 83
JY Super AC/ DC Rechargeable Moving Fan 45 Degree Rotating JY-2218

JY Super AC/ DC Rechargeable Moving Fan 45 Degree Rotating JY-2218

৳ 1450৳ 999
J5019 HW-357 Boost Module DC DC Step Up Adjustable UPS 4.5-8V To 3.7-27V 1A Boost Converter Adapters 3.7V 18650 AAA AA Battery Charger TP4056

J5019 HW-357 Boost Module DC DC Step Up Adjustable UPS 4.5-8V To 3.7-27V 1A Boost Converter Adapters 3.7V 18650 AAA AA Battery Charger TP4056

৳ 70৳ 64
shopLogo

bengali etcetera

Visit Store

Product Description

  • Module Properties: Non-isolated step-down module (BUCK)
  • Rectification: Synchronous rectification
  • Input voltage: DC 4.75V-23V
  • Output voltage: DC 1.0V-17V (Adjustable, Output < Input)
  • Output current: Rated current 1.8A
  • Output ripple: 30mV (no-load)
  • Conversion efficiency:96%(highest)
  • Switching Frequency: 340KHz
  • Output ripple:30mV (no-load)
  • Load regulation:±0.5%
  • Voltage regulation:±2.5%
  • Operating Temperature: Industrial (-40 ~ +85)
  • Short circuit protection: No
  • Input Reverse protection: No
