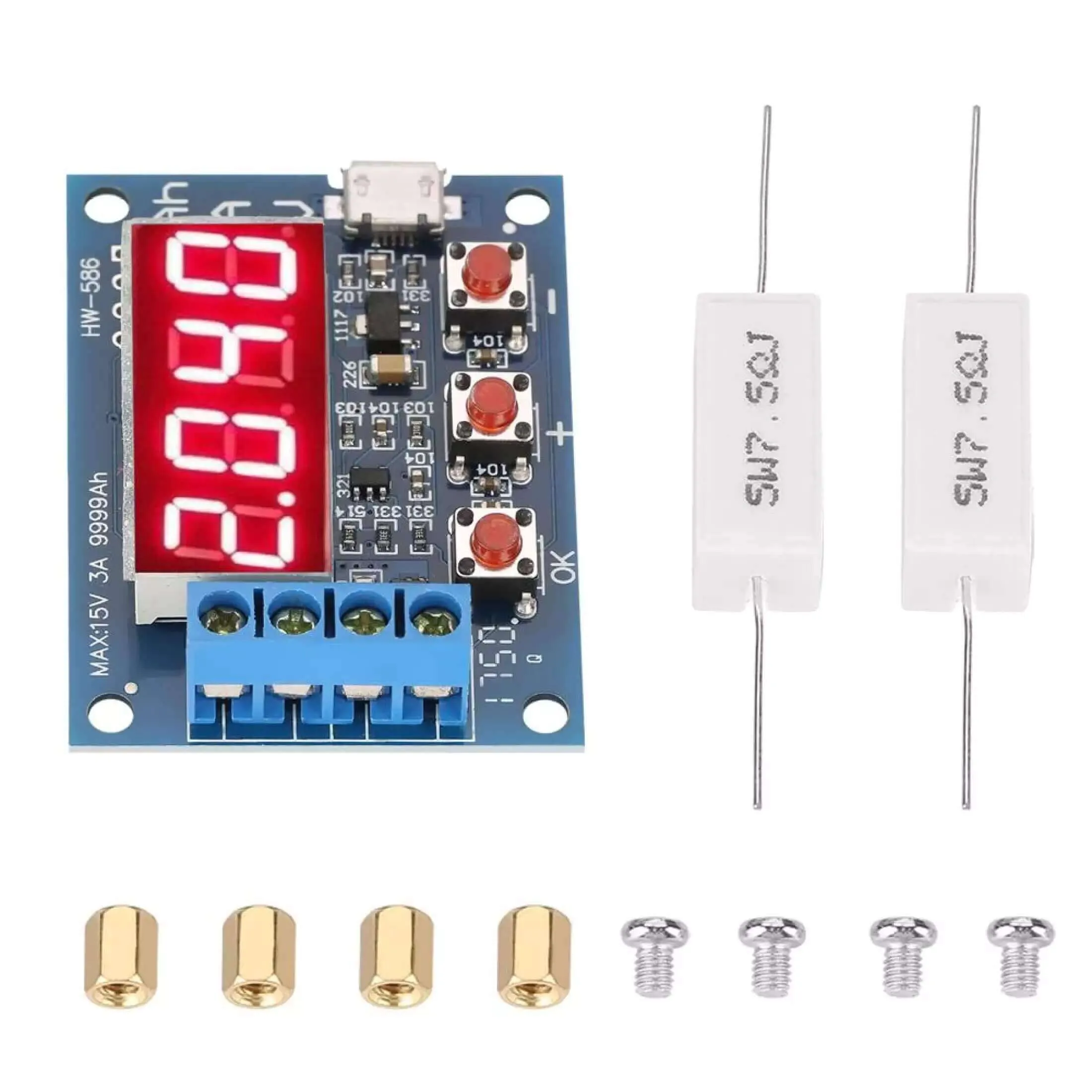

Image of HW586 Battery Capacity Tester module. HW-586 tester circuit for 18650 Lithium ion Battery
1 / 2

৳ 280

৳ 300

HW586 Battery Capacity Tester module. HW-586 tester circuit for 18650 Lithium ion Battery

Select Color:

Select Size:

You may also like

BT-168 Battery Tester Universal Battery Checker Small Battery Testers for AAA AA C D 9V 1.5V Button Cell Batteries

BT-168 Battery Tester Universal Battery Checker Small Battery Testers for AAA AA C D 9V 1.5V Button Cell Batteries

৳ 280৳ 220
6cell 18650 Li-ion A grade Battery. collected from Old Laptop battery

6cell 18650 Li-ion A grade Battery. collected from Old Laptop battery

৳ 330৳ 320
AA Batteries, 1.2V Ni-MH Rechargeable Battery-1000 mAh

AA Batteries, 1.2V Ni-MH Rechargeable Battery-1000 mAh

৳ 120৳ 75
AAA Batteries, 1.2V Ni-MH Rechargeable remote Battery-700mAh 1Pc

AAA Batteries, 1.2V Ni-MH Rechargeable remote Battery-700mAh 1Pc

৳ 120৳ 75
4 battery Nothing Power Bank Case Transparent Power Bank Fast Charging External Battery for Mobile and others Battery Charger (Without Battery)

4 battery Nothing Power Bank Case Transparent Power Bank Fast Charging External Battery for Mobile and others Battery Charger (Without Battery)

৳ 600৳ 550
Charger 3.7 Volt Battery Charger Trimmer Battery Charger - LED indicator, red light on charging -

Charger 3.7 Volt Battery Charger Trimmer Battery Charger - LED indicator, red light on charging -

৳ 150৳ 110
shopLogo

easy creative ele...

Visit Store

Product Description

  • Power supply voltage: DC4.5-6V (micro USB connector) HW-586 Battery Capacity Tester
  • Operating Current: less than 70mA
  • Discharge voltage: 1.00V-15.00V 0.01V resolution
  • Termination voltage range: 0.5-11.0V
  • Support by current: 3.000A 0.001A resolution
  • voltage measurement error: 1% + 0.02V
  • Board size: 50mmX37mm
  • Material: Electrical components
  • Color: See pictures
  • current measurement error: 1.5% + – 0.008A


Features:

Battery capacity range: 9999Ah (1Ah = 1000mAh) greater value by shifting the decimal point to switch, when the display is less than 10Ah X.XXX, as shown above to achieve 10Ah XX.XX, and so on.

ZB2L3 battery capacity tester discharge type 1.2-12V external load capacity of the battery and other tests 18650

Tools, single-function, by controlling the load off and get real-time integrated discharge current capacity results

Maximum support 15V 3A discharged through the discharge voltage and current, itself does not discharge

Maximum capacity statistics support 9999Ah (9999000mAh)

Automatically identify and develop appropriate battery termination voltage can also be manually adjust

Instructions:

1. The first test should be fully charged battery. ZB2L3 HW-586 Battery Capacity Tester

2. Connect the battery to be tested positive to positive input, a negative input to the negative, can not be revers (with load reversal may damage the circuit)! Load connect to the output of the positive and negative output, to work through the tester micro USB power supply , then the battery voltage.

3. Direct start test need only one press of the “OK” button, the tester can automatically develop an appropriate termination voltage of the battery full charge voltage, and will start flashing after the test three times. Need to develop artificial termination voltage only when the battery voltage display state by pressing “+” or “-” buttons to modify the termination voltage display beginning with P, behind the representative voltage resolution 0.1V, set up after pressing the “OK “start testing.
