KOOZER XM490

Quick release version = front 5×100 / rear 5x135mm or front 9×100 / rear 10x135mm Quick release version

QR= quick release version = front 5×100 / rear 5x135mm = front 9×100 / rear 10x135mm QR

thru-axle version = front 15×100 / rear 12x142m

TA= through axle version =THRU= front 15×100 / rear 12x142mm

wide axle version = front 15×110 / rear 5x141mm quick release / 12x148mm thru axle

Boost = front 15x110mm / rear 5×141 or 10x141mm QR /12x148mm TA/THRU

HG/XD/MS = the hub’s cassette body is compatible with Shimano MTB 8-11 speed cassette and Sram PG series 8-12 speed cassette(HG) / Sram MTB XG series cassette 11&12 speed(XD) / Shimano MTB micro spline 12 speed cassette(MS).

Features:

Material: AL6061(Body)+AL7075(Axle)

Bearing: 2+4 Sealed NBK Bearings(F: 2, R: 4 Made in Taiwan), smooth and quite rolling

Spoke Holes: 32 holes ( If you need 28 or 36 hole, you can find them on our store.)

Version: Quick release(qr) or Thru Axle(THR)

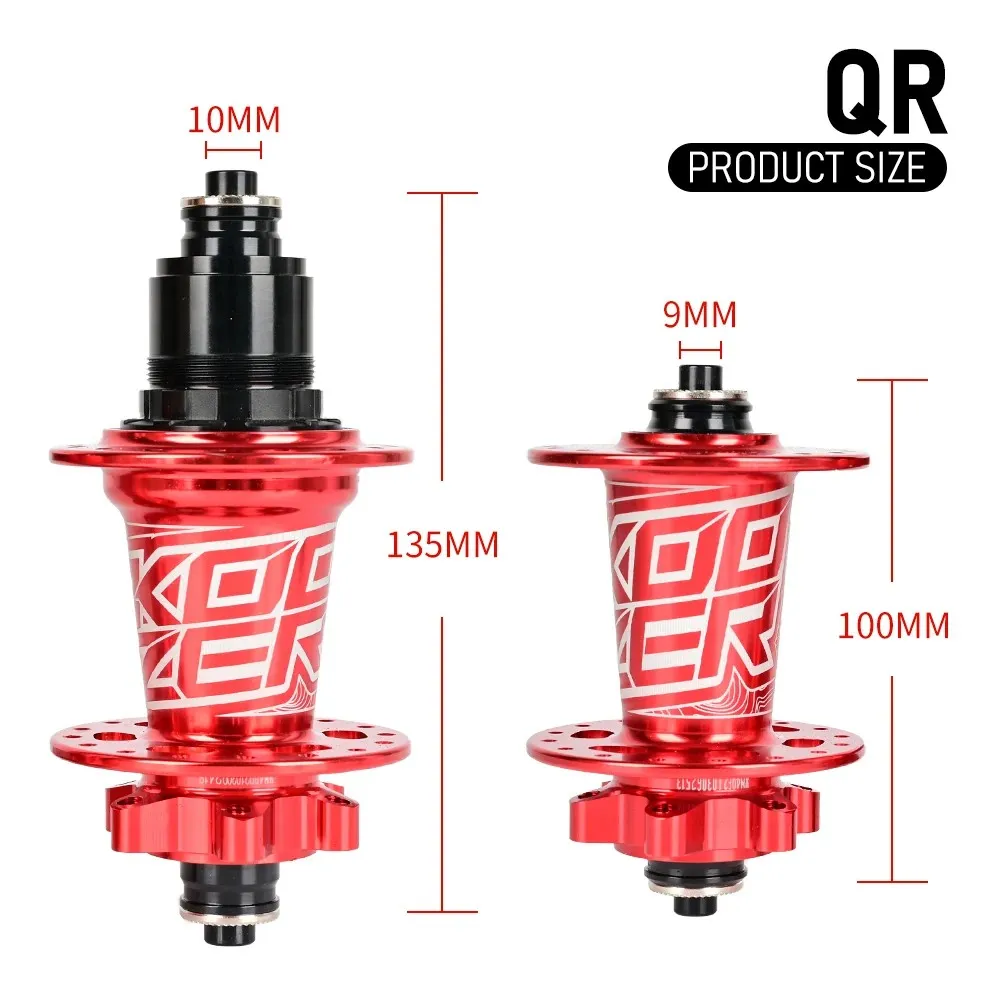

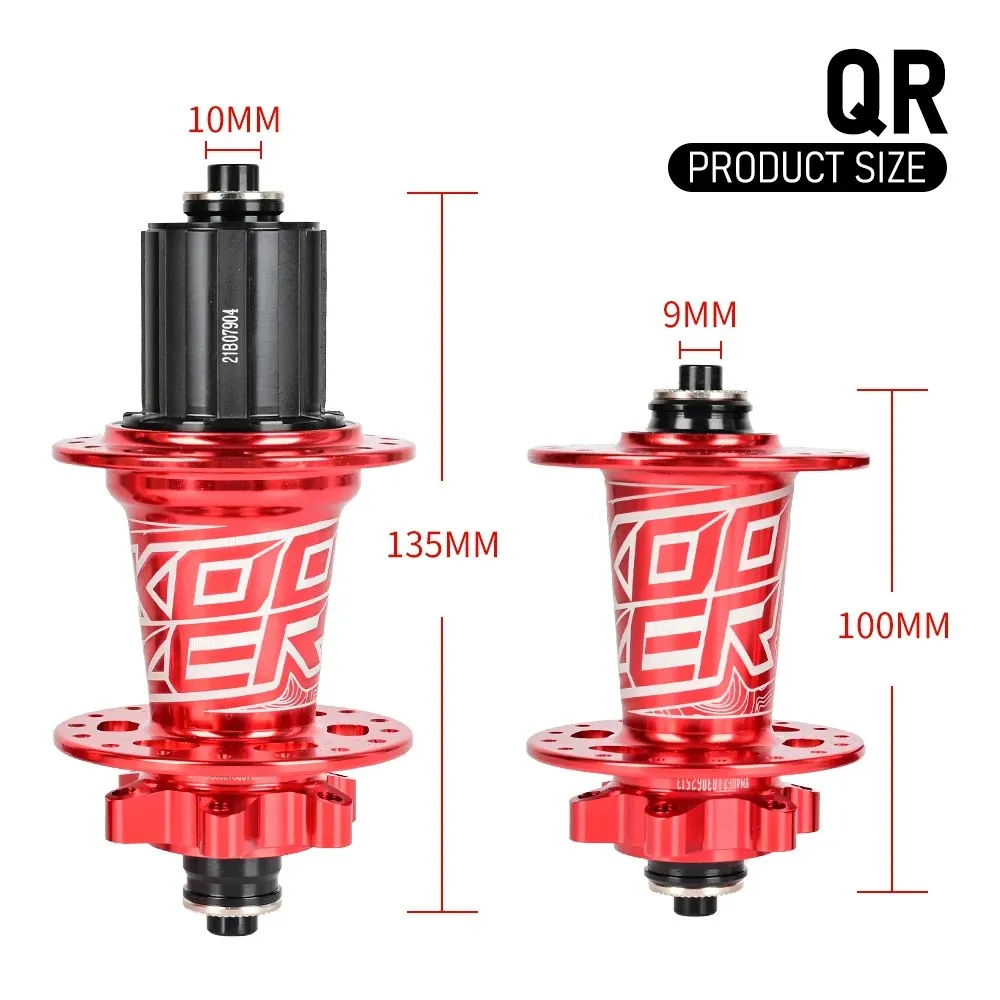

QR Version: Front hub: 9x100mm, Rear hub: 10x135mm

Thru Version: Front hub: 15x100mm, Rear hub: 12x142mm

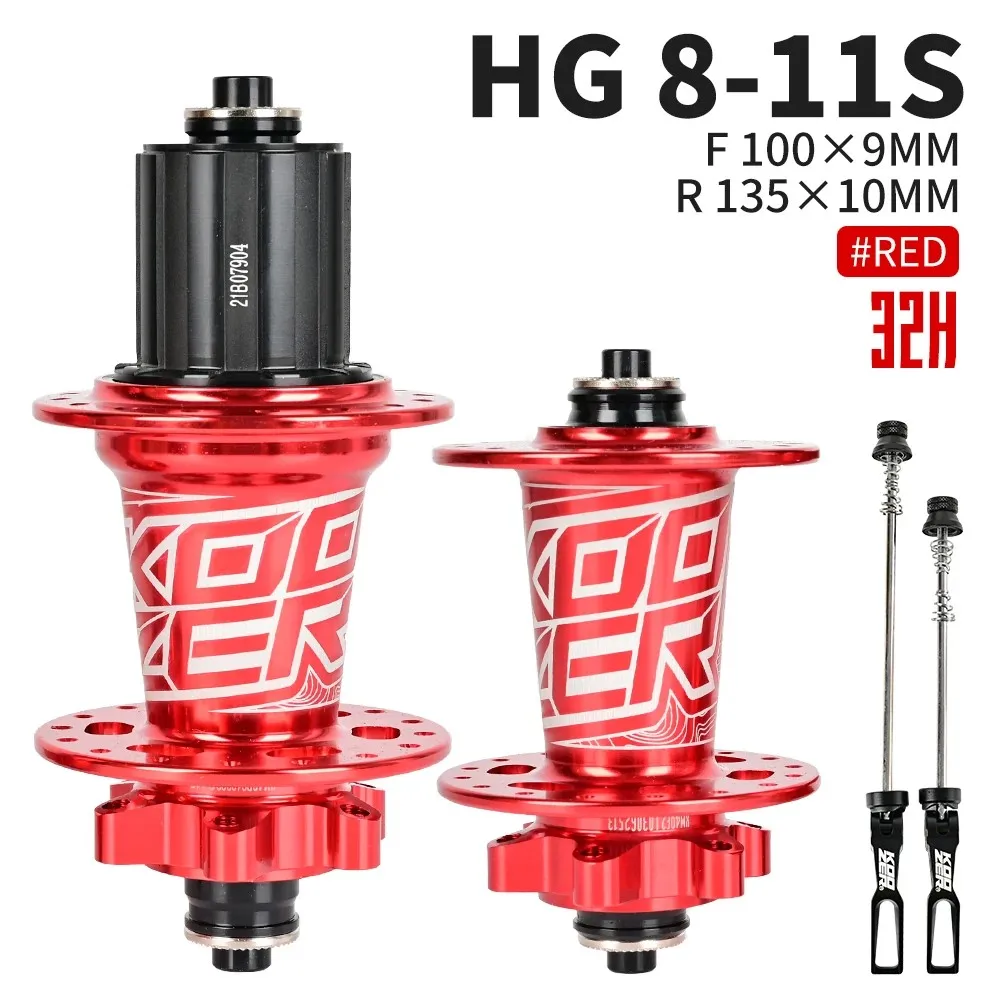

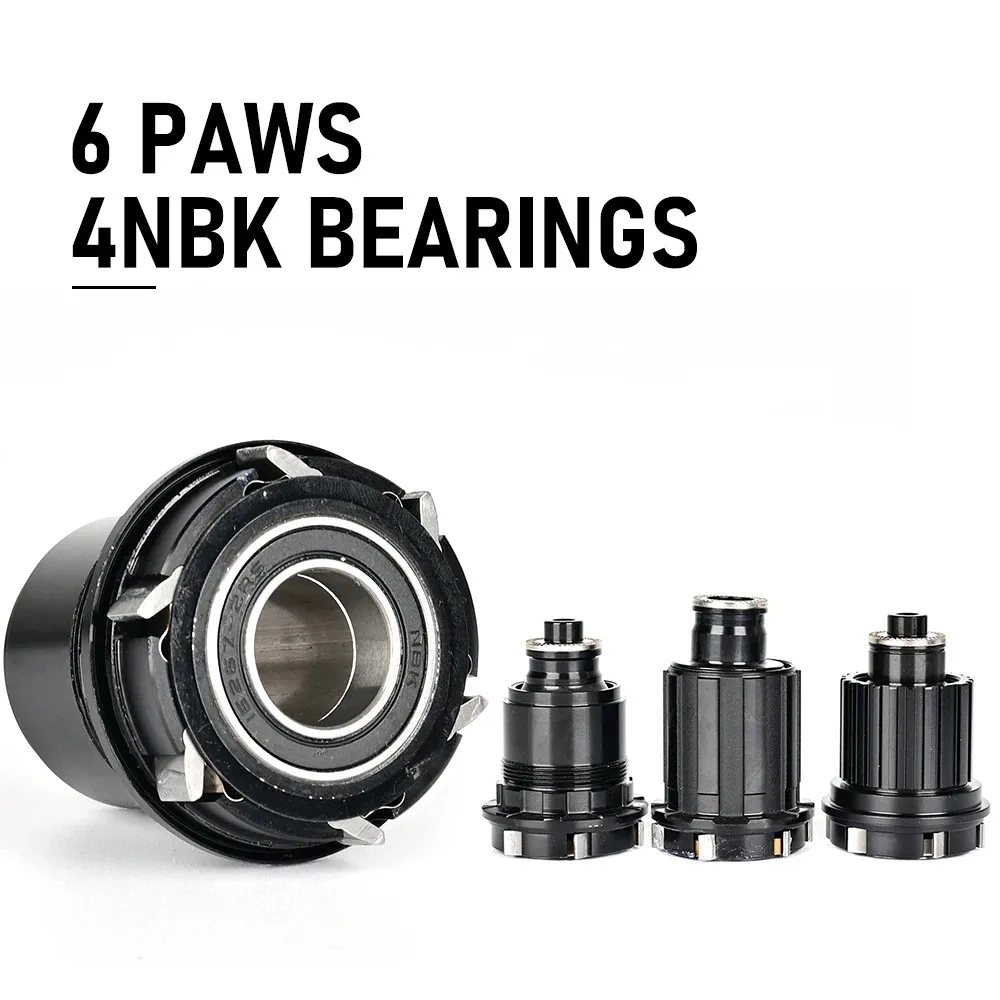

Freehub Body: 6 Pawls & 72 HD system. For SRAM & SHIMANO MTB 8-11S. And Shimano MS 12S & SRAM XD 12S Available.

Brake Interface: Disc IS (6-BOLT)

Color: Black, Red, Blue, Gold, Pink, Cool Gray

Weight: Front hub 185g/6.53oz; Rear hub 305g/10.76oz.
