1 / 3 ৳ 85

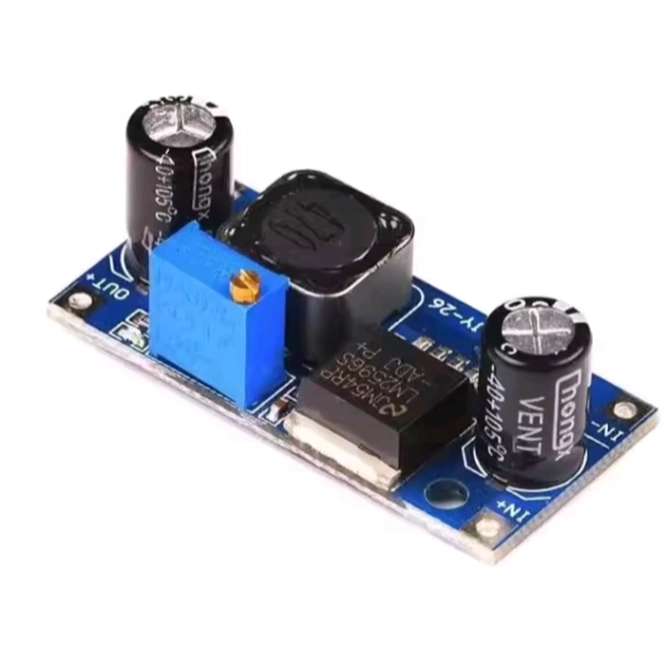

LM2596 DC-DC Buck Converter xl2696 1 pcs
৳ 85
Select Color:
Select Size:
Not Provided
You may also like
.webp&w=384&q=75)
XL4015 Buck Converter 5A DC To DC CC CV Lithium Battery Step down Charging Board Led Power Converter Charger Step Down Module
৳ 299৳ 133
QC3 0 QC2 0 3V 5V 12V USB DC DC Buck Converter Charging Step Down Module 6 32V 9V 12V 24V to Fast Quick Charger
৳ 299৳ 97
DC DC Step Up MT3608 Boost Converter DC 2V 24V to 5V 28V 2A Adjustable Voltage Regulator Module Power Supply Step Up Voltage
৳ 299৳ 53
.webp&w=384&q=75)
J5019 HW-357 Boost Module DC-DC Step Up Converter - Boosts Voltage for Tp4056 Battery Charger Efficient Voltage Boosting
৳ 199৳ 64
XL6019 DC DC Voltage Booster Module 1 pcs
৳ 210৳ 200
Relay Module DC 5V Single Channel Trigger Relay Control Module With Screw Terminal
৳ 499৳ 229
lite express
Product Description
Module Property: Non-isolation buck converter.
Rectification Mode: Non-synchronous rectification.
Type: LM2596 Adjustable Power Supply Module.
Input Voltage: DC 4V to 35V.
Output Voltage: DC 1.23V to 30V.
Output Current: 3A (Maximum).
Conversion Efficiency: 92% (Highest).
Output Ripple: 30mV (Maximum).
Switching Frequency: 150KHz.
Load Regulation: 0.5%.
Voltage Regulation: 2.5%.
Operating Temperature: -40°C to +85°C.
Dimensions: 43x20x14mm.
Package:
1 x DC-DC Step Down LM2596 Converter Module.
