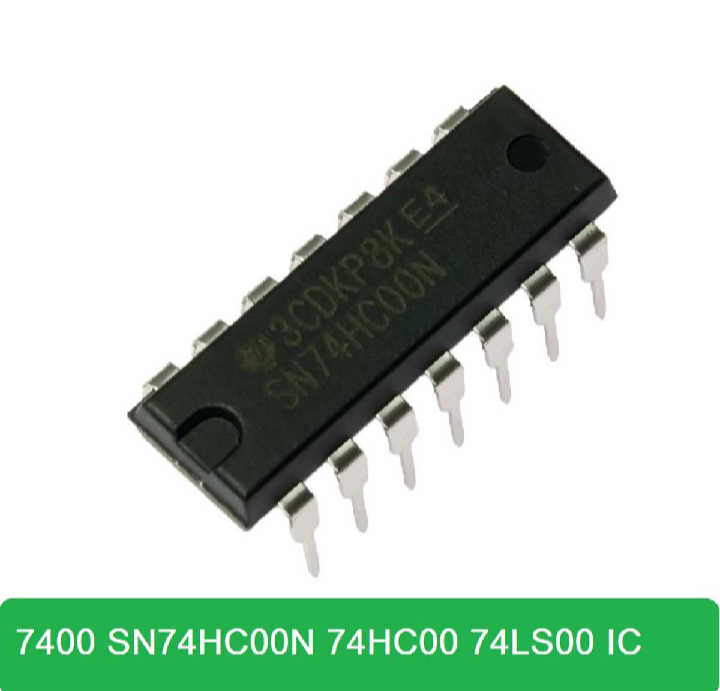

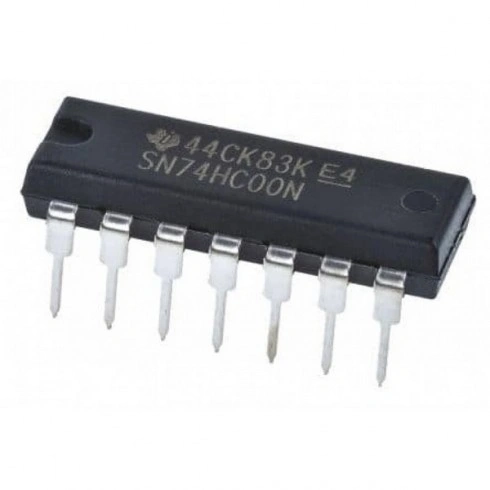

Manufacturer: NXP

RoHS: RoHS Compliant Details

Product: Single-Function Gate

Logic Function: NAND

Logic Family: 74HC

Number of Gates: 4 Gate

Number of Input Lines: 8 Input

Number of Output Lines: 4 Output

High Level Output Current: - 5.2 mA

Low Level Output Current: 5.2 mA

Propagation Delay Time: 7 ns

Supply Voltage - Max: 6 V

Supply Voltage - Min: 2 V

Maximum Operating Temperature: + 125 C

Mounting Style: PDIP

Package/Case: DIP-14

Packaging: Tube

Brand: NXP Semiconductors

Function: NAND

Height: 1.45 mm (Max)

Length: 8.75 mm (Max)

Logic Type: Quad NAND Gate

Minimum Operating Temperature: - 40 C

Operating Supply Voltage: 2 V to 6 V

Factory Pack Quantity: 1140

Width: 4 mm (Max)
