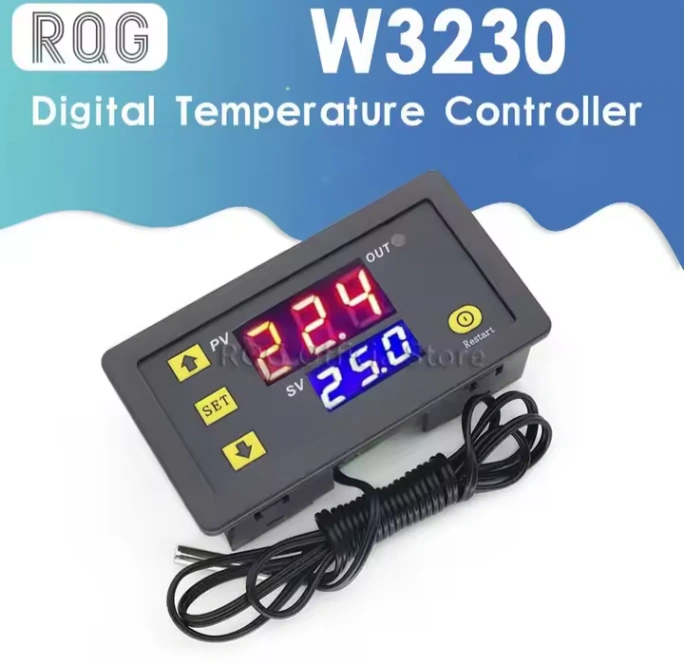

Mini temperature controller.

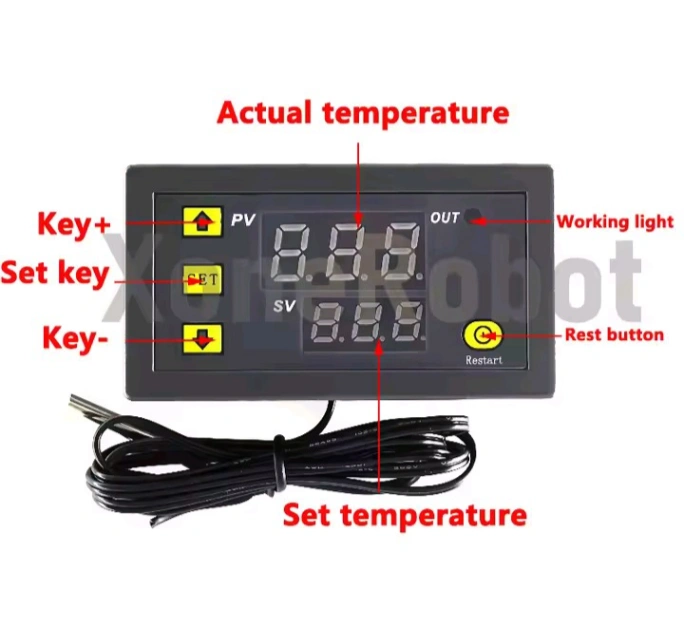

With clear LED display for better readability.

Wide temperature measuring range.

Heating or cooling control.

All parameters setting can be saved after short circuit.

Relay output.

High Control precision 0.1 centigrade

Can be used for domestic freezer, water tanks, refrigerator, industrial chiller, steamer, industrial equipment and other temperature-controlled system.

Specifications:

Power Supply:12VDC

Temperature Control Range:-55°-120°

Resolution Ratio: 0.1°C(-9.9-99.9); 1°C(other range)

Color of Displaying: red/blue

Measurement accuracy: ±0.1°C

Control accuracy: 0.1°C

Sensor: NTC10K Waterproof sensor

Output: Relay Contact Capacity 20A 12V

Environmental requirements: -10-60°C , humidity 20%-85%RH

Dimension:79mm *43mm*26mm

Cutting Size:73mm*39mm

Sensor wire: 1 meter
