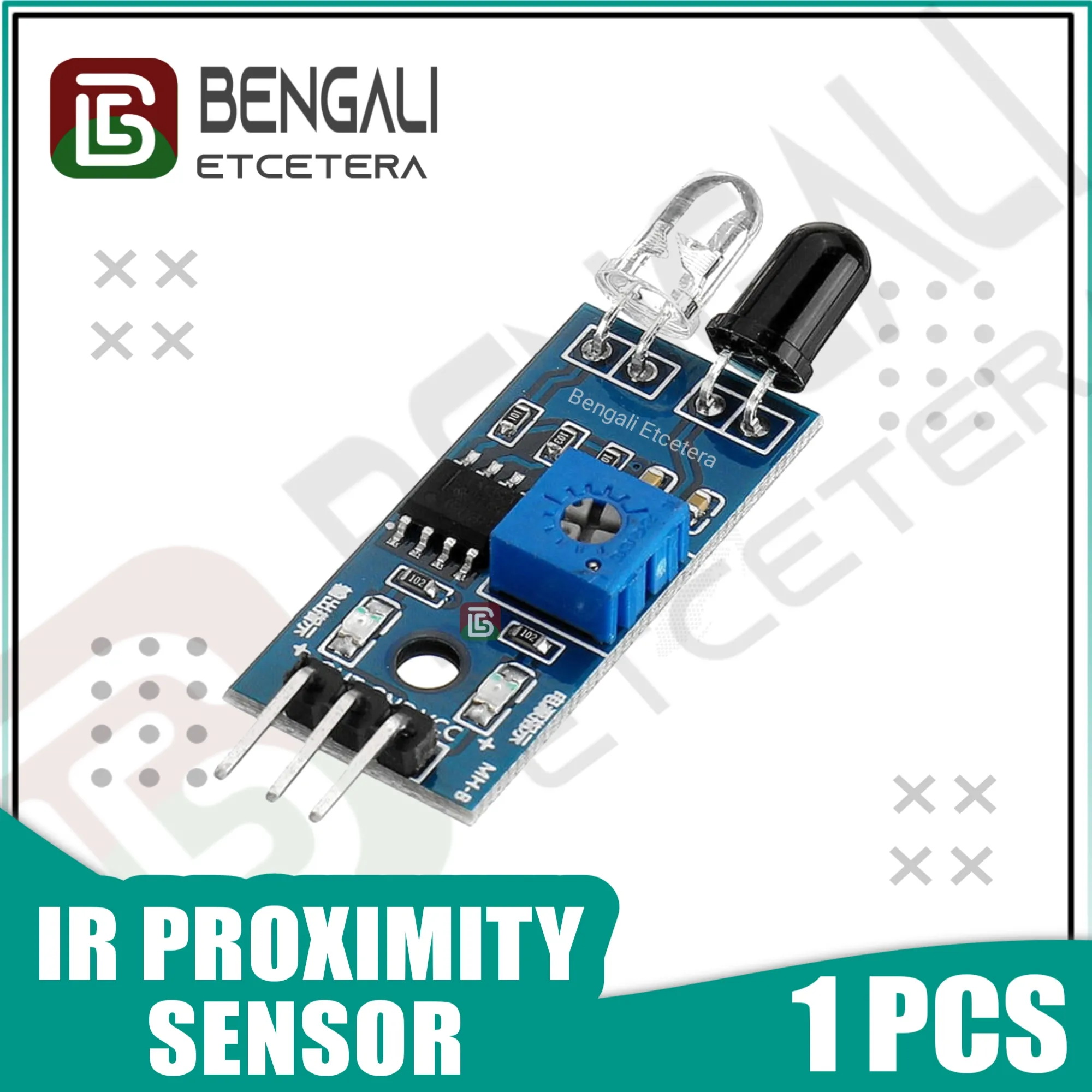

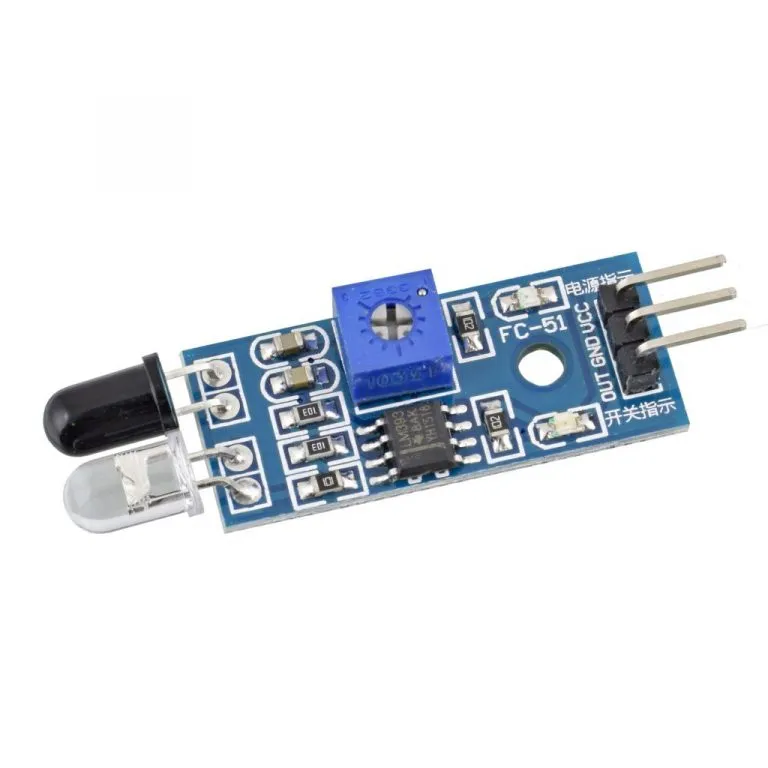

Infrared Proximity Sensor IR Infrared Obstacle Avoidance Sensor Module Compatible With Arduino Uno
Select Color:
Product Description
- Model Number: FC-51
- Detection angle: 35 °
- Operating Voltage: 3.0V – 6.0V
- Detection range: 2cm – 30cm (Adjustable using potentiometer)
- pcb size : 3.1 cm (L) x 1.4 cm (W)
- Overall Dimension: 4.5cm (L) x 1.4 cm (W), 0.7cm (H)
- Active output level: Outputs Low logic level when obstacle is detected
- In-active output level: Outputs High logic level when obstacle is not detected
